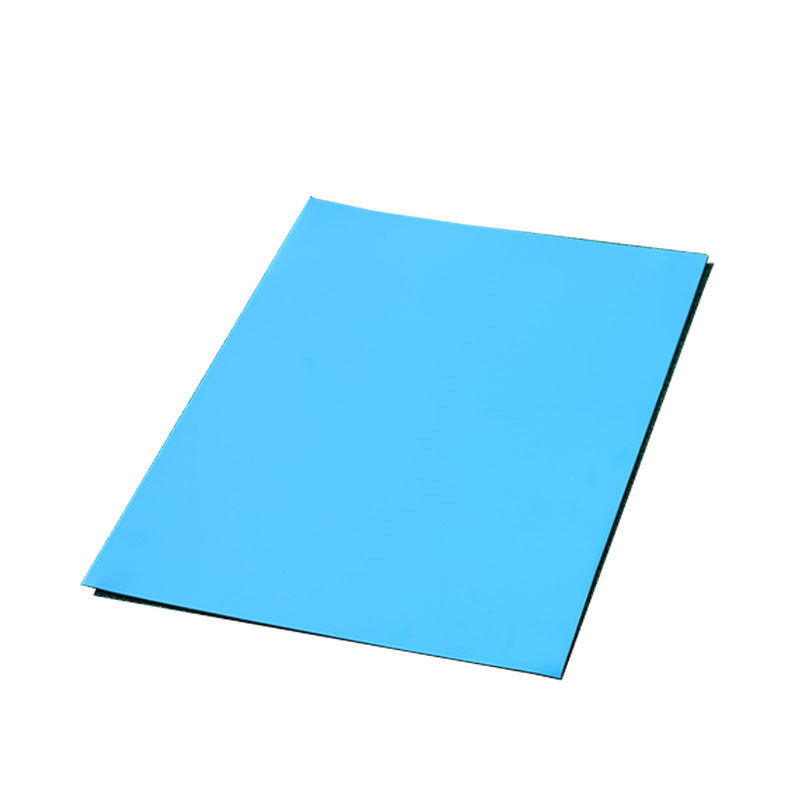

Al-Mg-Mn Alloy 3004 Aluminium Coated Sheet For Building Curtain Wall

3004 series alloy (Al-Mn-Mg system) that undergoes surface cleaning, chemical pretreatment,

and coating application (typically with high-performance PVDF fluorocarbon or polyester paints)

followed by high-temperature curing.

Company messages

♦ We have implemented standardized processes to enhance work efficiency, reduce confusion,

  minimize errors, and boost overall productivity.

♦ A comfortable and well-lit work environment, combined with a reasonably arranged office layout,

  fosters a positive work attitude, healthy interpersonal relationships, and sustained team growth

  motivation, while enhancing team cohesion and a sense of belonging.

♦  The left 1 is me ^ ^ , we expect the cooperation with your company.

1) We are professional color coated aluminum material manufacture factory,  own 3 production

    lines for coil, 2 lines for sheet, the Max Width 2700mm.

2) We follow clear internal management and standardized processes to keep our production smooth,

     efficient, and well-organized.

3) Mainly products:    color coated aluminum coil

                                   wood grain coated aluminum coil

                                   stone texture coated aluminum coil

                                   Al-Mn-Mg roof aluminum coil

                                   mirror finish coated aluminum coil

At the same time, we can produce curtain wall aluminum veneer, aluminum honeycomb panel,

heat transfer printed aluminum coil.

Inspection and Testing Measures for Color Coated Aluminum Coil

1)  We test the bending and hardness property for every batch raw material, make sure the Alloy

     Temper can meet customer’s requirement.

 2) During the production process, we use online inspection systems to monitor key parameters,

     such as coating thickness, uniformity, adhesion.

  3) Before delivery, we will select samples to test, including grid testing, impact testing, and bending

       testing. For some special products, we will carry out some chemical testing.

   4) We have MTC for every batch product, convenient for tracking and confirmation. Test records

       are kept by our laboratory staffs.

Primarily used for:

• Curtain walls

• Roofing systems

• Architectural decoration

Key Characteristics of 3004 Aluminum Coil

Mechanical Properties

Tensile strength: 180-240 MPa (H34 temper reaches ≥240 MPa)

Elongation: ≥8% (H34), excellent for stamping and forming

Corrosion Resistance

Mn and Mg elements enhance atmospheric/rain corrosion resistance

Formability

Excellent bendability and deep-drawing capability for complex facade shapes

Common Tempers

Performance Advantages for Curtain Walls

♦ Lightweight

Density: 2.7g/cm³ (65% lighter than steel), reducing structural loads

♦ Aesthetic Flexibility

Custom PVDF colors (metallic, woodgrain effects) with UV resistance (ΔE<3 after 15 years)

Notable Project Applications

✅ Skyscrapers: Shanghai World Financial Center (decorative elements)

✅ Airports: Beijing Daxing Airport (curved sunshades)

Production Range

Company Advantages

   Advanced Equipment

 • German SMS Group fully automated coating lines with ±0.01mm thickness precision,

    Line Speed: 120m/min (20% faster than industry average data)

 • MES system enables real-time production monitoring with ≥99.3% product qualification rate

 • Multi-spectral imaging detects micro-defects as small as 0.02mm² with 99.8% recognition accuracy

Technology Patents

♦ Anti-Static Color Aluminum Coil and Continuous Production System

♦ Chromium-Free Passivation Solution for Color-Coated Aluminum Coils and Preparation Method

♦ Production Process for High Solar-Reflectance Color Aluminum Coils

♦ Method for Preparing 3D Wood Grain Aluminum Coil Based on Nanoimprint Technology

♦ Low-Temperature Curing Technology
