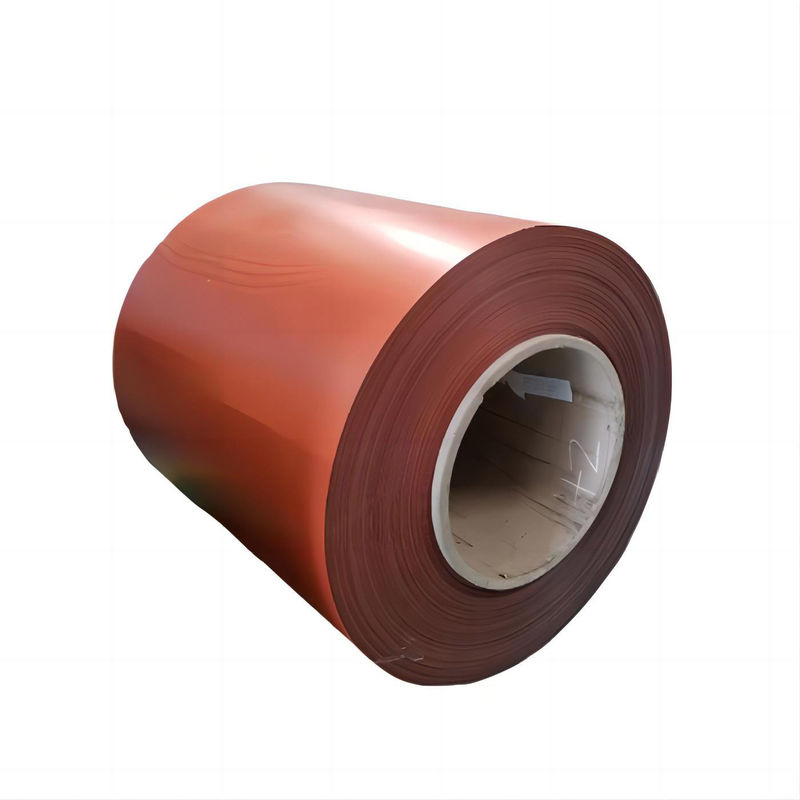

3003 Brick Red Aluminum Roofing Coil Aluminum Corrugated Sheet Material

Color-coated aluminum corrugated sheets (also known as color aluminum roofing panels) are

lightweight, durable roofing materials made by roll-forming pre-painted aluminum coils. They are

widely used in industrial plants, warehouses, agricultural greenhouses, and other structures.

Advantages of Color-Coated Aluminum Corrugated Sheets

① Lightweight

Weight: 2.5–4.5 kg/m² (thickness 0.5–1.2mm), 30% lighter than traditional color steel sheets,

reducing structural load.

② Superior Corrosion Resistance

Aluminum substrate (AA3003/AA5052) is naturally rust-resistant, combined with PVDF/PE

coating, achieving 1,000+ hours in salt spray tests and a 20–30-year lifespan (double that

of color steel sheets).

③ Excellent Weather Resistance

UV-resistant coating prevents fading, suitable for extreme conditions (-50°C to +120°C), high

humidity , and coastal areas.

④ Eco-Friendly & Energy-Efficient

Reflectivity >80%, reducing heat absorption and lowering cooling costs.

100% recyclable, pollution-free.

Recommended Applications

♦ Industrial Plants/Warehouses

Choose 0.8mm PVDF coating + 900-type for cost-effectiveness and wind resistance (withstands

Category 12 winds).

♦ Agricultural Greenhouses/Livestock Shelters

Opt for 0.5mm PE coating + light-transmitting holes to reduce weight and improve lighting.

♦ Commercial Buildings (Canopies/Awnings)

Select wood grain/matte PVDF coating for enhanced aesthetics.

Comparison with Alternatives

Company Advantages

   Advanced Equipment

 • German SMS Group fully automated coating lines with ±0.01mm thickness precision,

    Line Speed: 120m/min (20% faster than industry average data)

 • MES system enables real-time production monitoring with ≥99.3% product qualification rate

 • Multi-spectral imaging detects micro-defects as small as 0.02mm² with 99.8% recognition accuracy

Technology Patents

♦ Anti-Static Color Aluminum Coil and Continuous Production System

♦ Chromium-Free Passivation Solution for Color-Coated Aluminum Coils and Preparation Method

♦ Production Process for High Solar-Reflectance Color Aluminum Coils

♦ Method for Preparing 3D Wood Grain Aluminum Coil Based on Nanoimprint Technology

♦ Low-Temperature Curing Technology
