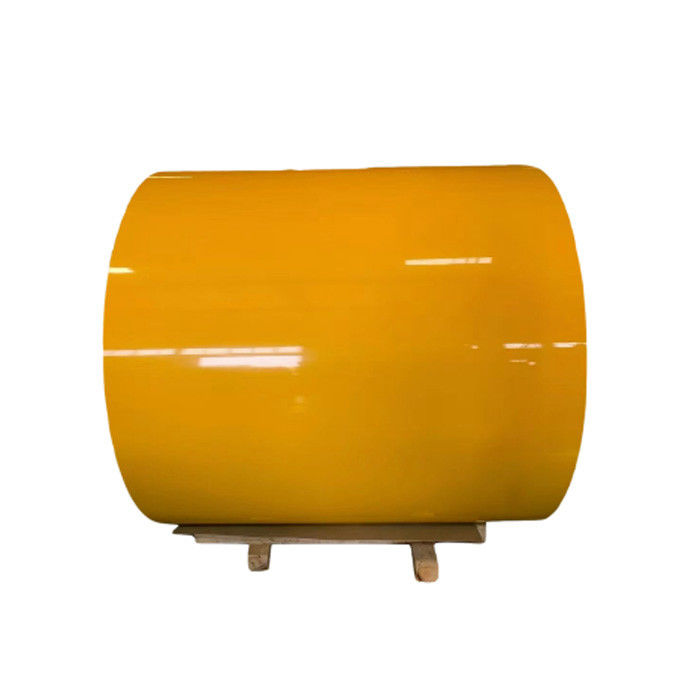

AA3003 Curtain Wall Aluminum Coil 3003 ACP Aluminum Coils

Color-coated aluminum coil is widely used to manufacture aluminum composite panels (ACP),

which are a popular choice for modern curtain wall systems due to their lightweight, durability,

and aesthetic flexibility.

Advantages of Color-Coated Aluminum ACP for Curtain Walls

① Lightweight & High Strength

Weight: 5–7 kg/m² (depending on thickness), reducing structural load by 50%+ compared to tr

-aditional materials like stone or glass.

Core Material: Typically PE (polyethylene) or fire-retardant mineral core, enhancing rigidity while

maintaining lightness.

② Superior Weather Resistance

PVDF Coating: Resists UV rays, acid rain, and pollution, with a 15–25 year lifespan in harsh environments.

Salt Spray Resistance: 3,000+ hours (ideal for coastal areas).

③ Design Flexibility

Colors & Finishes: Available in solid colors, metallic, wood grain, stone patterns, and custom prints.

Formability: Can be bent, folded, or perforated for unique architectural designs.

④ Fire Safety

Fire-Retardant (FR) ACP: Meets A2, B1 fire ratings , suitable for high-rise buildings.

⑤ Easy Installation & Maintenance

Modular installation with hidden or exposed fixing systems.

Comparison with Other Cladding Materials

Applications in Curtain Wall Systems

① Commercial High-Rises

PVDF-coated ACP in metallic finishes for a modern, sleek appearance.

Perforated panels for sun shading and ventilation.

② Institutional Buildings (Hospitals, Schools)

Anti-bacterial coatings for hygiene.

Fireproof ACP (A2-rated) for safety compliance.

③ Retail & Hospitality

Custom wood/stone finishes for branding and aesthetics.

Lightweight cladding for renovation projects.

④ Transportation Hubs (Airports, Stations)

High-impact resistance for durability.

Company Advantages

   Advanced Equipment

 • German SMS Group fully automated coating lines with ±0.01mm thickness precision,

    Line Speed: 120m/min (20% faster than industry average data)

 • MES system enables real-time production monitoring with ≥99.3% product qualification rate

 • Multi-spectral imaging detects micro-defects as small as 0.02mm² with 99.8% recognition accuracy

Technology Patents

♦ Anti-Static Color Aluminum Coil and Continuous Production System

♦ Chromium-Free Passivation Solution for Color-Coated Aluminum Coils and Preparation Method

♦ Production Process for High Solar-Reflectance Color Aluminum Coils

♦ Method for Preparing 3D Wood Grain Aluminum Coil Based on Nanoimprint Technology

♦ Low-Temperature Curing Technology
