ASTM B209 Aluminum 5083 Coil Aluminum Alloy Roll For Transportation

Brand Name:	JERO
Model Number:	JA90
MOQ:	7 tons
Price:	3000-3200usd/ton
Packaging Details:	seaworthy standard export packages
Payment Terms:	T/T,L/C,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS DNV LR KR NK

Type:

Aluminum Alloy Coil

Standard:

ASTM B209

Alloy:

AA5083

Temper:

O/H111/H116

Width:

1000-2900mm

Trade Terms:

FOB/CIF/CFR/EXW

Supply Ability:

800 tons per week

Highlight:

5083 Aluminum Alloy Roll

ASTM B209 Aluminum Alloy Roll

Transportation Aluminum Alloy Roll

Product Description

ASTM B209 Aluminum 5083 Coil Aluminum Alloy Roll Used For Transportation

5083 aluminum’s main alloy is magnesium, which makes it one of the strongest non-heat-treatable

aluminum alloys. It has good weldability, conductivity, and formability, and its strong resistance to

corrosion makes it a popular choice for marine environments and other applications that require high performance in harsh conditions.

Mechanical Properties

Temper

Tensile Strength

(MPa)

Yield Strength

(MPa)

Elongation

(%)

H111

270-345

125-215

14-18

H116

290-360

215-290

10-14

Typical Applications and Technical Advantages

Application	Thickness (mm)	Key Advantages	Comparison with Alternatives
NEV Battery Enclosures	1.2-2.5	▶ 40%+ weight reduction (vs. steel)	6061-T6: 30% higher cost, poor weldability
		▶ 35dB EMI shielding
		▶ Welding distortion <1mm/m
Heavy-Duty Truck Fuel Tanks	3.0-4.5	▶ Diesel permeability: 0.01g/m²·day	Galvanized steel: 60% heavier
		▶ Withstands 100,000 stone impact tests
Rail Vehicle Bodies	2.5-6.0	▶ Longitudinal compressive strength ≥240MPa (EN 12663)	Stainless steel: 2x higher cost
		▶ Fire smoke toxicity class S4 (DIN 5510-2)
Ship Superstructures	4.0-8.0	▶ Salt spray corrosion rate <0.015mm/year	Fiberglass: 3x higher maintenance cost
		▶ Arctic service temperature: -50℃

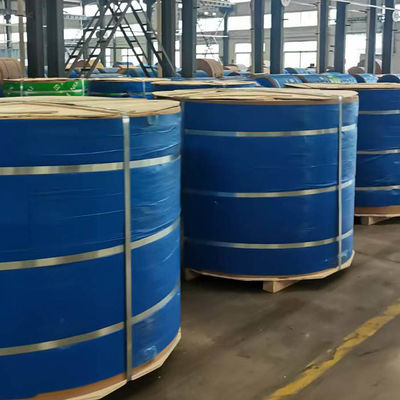

Our Samples in the Workshop:

Alloy/Temper	Size (mm)	Description
6016-F	8X2608xC	26.5ton the Heaviest Hot-Rolled Coil
6061-F	1.5x1000xC	the Thinest Hot-Rolled Coil
3104-H19	0.265x1640xC	3104 Can Body Material Coil
2024-T451	2.0x1850xC	2024 Aluminum Alloy for Aviation Application
5454-H32	8x2800xC	2800mm the Widest Hot-Rolled Coil

ASTM B209 Aluminum 5083 Coil Aluminum Alloy Roll For Transportation 0

Our company advantages

Technological & Production Strengths:

R&D Capabilities: Own a national-level corporate technology center and contributes to industry

standards.

Production Scale: We had an annual capacity exceeding 0.9 million tons of aluminum large-scale

rolling mills.

Production Ability: We can produce the Aluminum Plate / Coil for automobile, railway transportation,

marine, aerospace etc fields, and obtained the relevant certification.

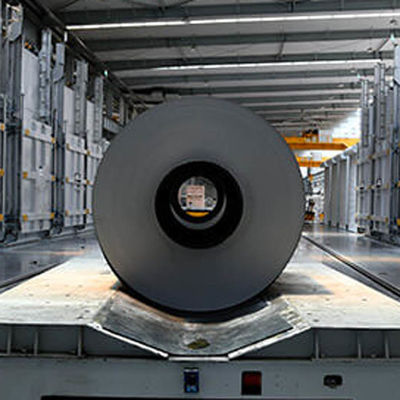

Our factory own the world advanced equipments, include:

Code	Name	Brand
A	aluminum ignot melting furnace	GAUTSCHI (Switzerland)
B	4 continuous hot rolling mills	SMS Group (Germany)
C	2800mm width single stand cold rolling mill	SMS Group (Germany)
D	all automatic three-dimensional elevated warehouse	Dematic (USA)

ASTM B209 Aluminum 5083 Coil Aluminum Alloy Roll For Transportation 1

ASTM B209 Aluminum 5083 Coil Aluminum Alloy Roll For Transportation 2
