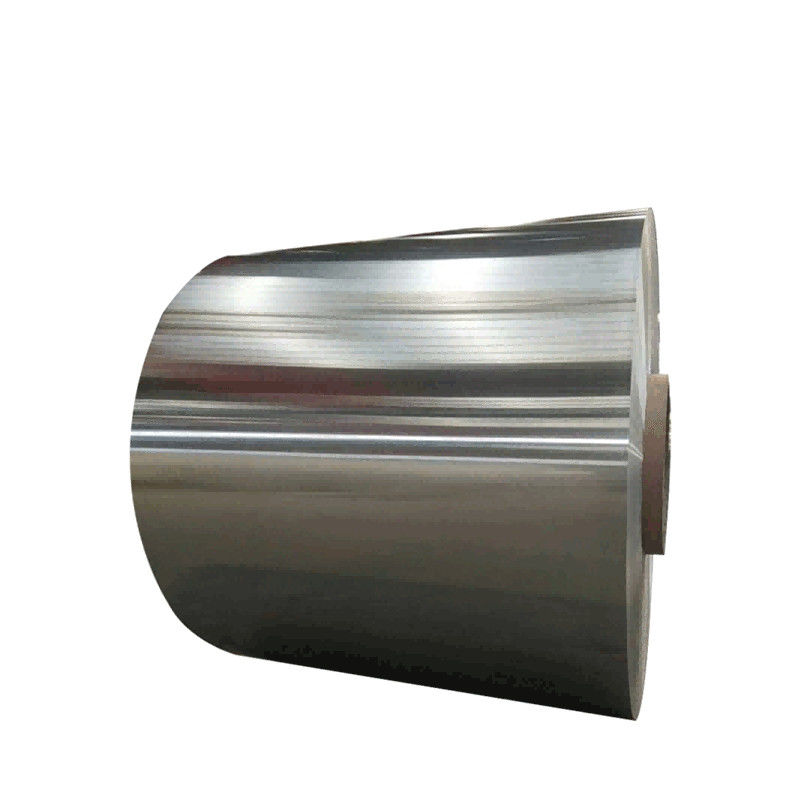

ASTM B209 5083 Aluminum Coil Aluminum Roll For Transportation

Brand Name:	JERO
Model Number:	JA90
MOQ:	7 tons
Price:	3000-3200usd/ton
Packaging Details:	seaworthy standard export packages
Payment Terms:	T/T,L/C,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS DNV LR KR NK

Type:

Aluminum Alloy Coil

Standard:

ASTM B209

Alloy:

Temper:

O/H111/H116

Width:

1000-2900mm

Trade Terms:

FOB/CIF/CFR/EXW

Supply Ability:

800 tons per week

Highlight:

Transportation Aluminum Coil

5083 Aluminum Coil

ASTM B209 Aluminum Coil

Product Description

ASTM B209 5083 Aluminum Coil Aluminum Roll Used For Transportation

5083 aluminum sheet belongs to Al-Mg series alloy. It is the highest strength corrosion-resistant

alloy among practical non-heat-treated alloys. And it is suitable for welding structures. Also, it is

worth mentioning that 5083 aluminum sheet has good resistance to seawater and low-temperat

-ure characteristics. Therefore, 5083 aluminum sheet has become the most suitable choice for

marine-grade aluminum.

Mechanical Properties

Temper	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)
O	270-345	125-215	14-18
H111	270-345	125-215	14-18
H116	290-360	215-290	10-14

Key Advantages

♦ Marine-Grade Performance

Saltwater corrosion resistance 3x better than 5052 alloy

Approved for shipbuilding by ABS/DNV/GL classifications

♦ Structural Efficiency

Specific strength comparable to mild steel at 1/3 the weight

Fatigue life 50% longer than 6061-T6 in dynamic loads

♦ Fabrication Benefits

Welding: No preheat required for thicknesses ≤25mm

Forming: Minimum bend radius = 1.5t (H111 temper)

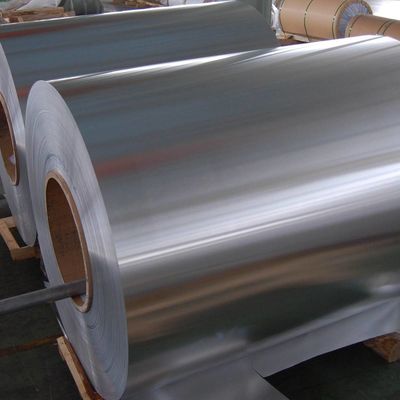

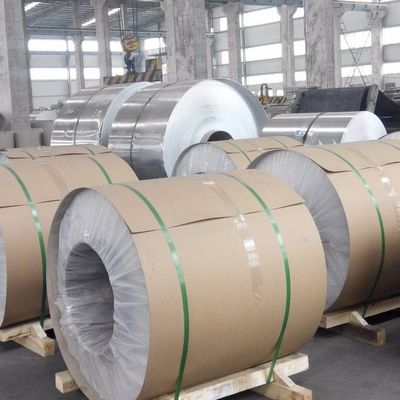

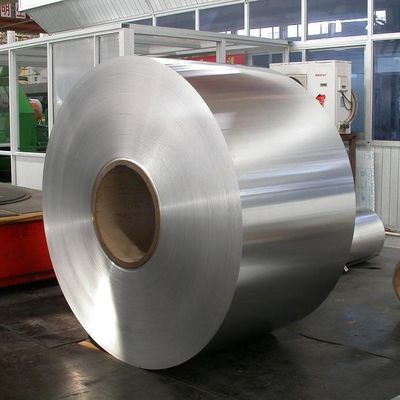

Our Samples in the Workshop:

Alloy/Temper	Size (mm)	Description
6016-F	8X2608xC	26.5ton the Heaviest Hot-Rolled Coil
6061-F	1.5x1000xC	the Thinest Hot-Rolled Coil
3104-H19	0.265x1640xC	3104 Can Body Material Coil
2024-T451	2.0x1850xC	2024 Aluminum Alloy for Aviation Application
5454-H32	8x2800xC	2800mm the Widest Hot-Rolled Coil
3004-H24	0.7x2650xC	2650mm super Wide Cold-Rolled Coil

ASTM B209 5083 Aluminum Coil Aluminum Roll For Transportation 0

Our company advantages

Technological & Production Strengths:

R&D Capabilities: Own a national-level corporate technology center and contributes to industry

standards.

Production Scale: We had an annual capacity exceeding 0.9 million tons of aluminum large-scale

rolling mills.

Production Ability: We can produce the Aluminum Plate / Coil for automobile, railway transportation,

marine, aerospace etc fields, and obtained the relevant certification.

Our factory own the world advanced equipments, include:

Code	Name	Brand
A	aluminum ignot melting furnace	GAUTSCHI (Switzerland)
B	4 continuous hot rolling mills	SMS Group (Germany)
C	2800mm width single stand cold rolling mill	SMS Group (Germany)
D	all automatic three-dimensional elevated warehouse	Dematic (USA)

ASTM B209 5083 Aluminum Coil Aluminum Roll For Transportation 1

ASTM B209 5083 Aluminum Coil Aluminum Roll For Transportation 2
