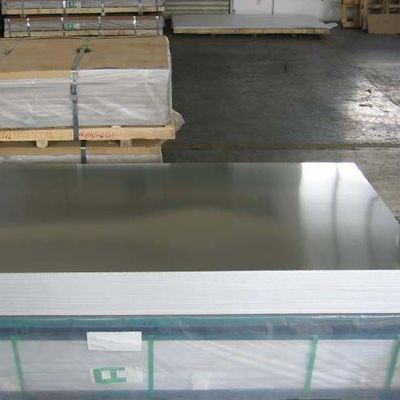

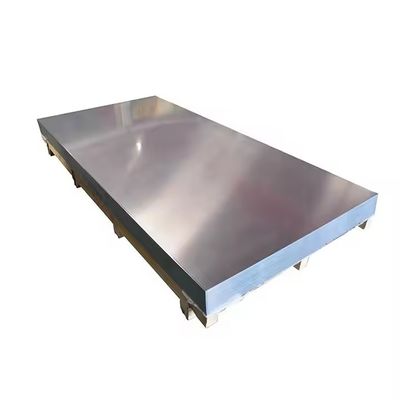

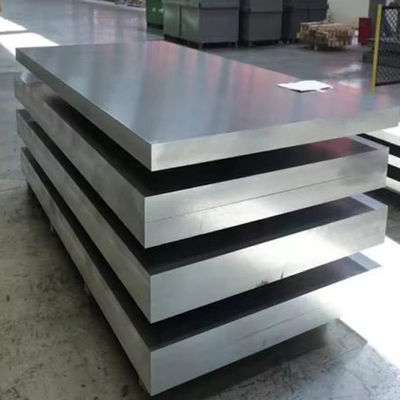

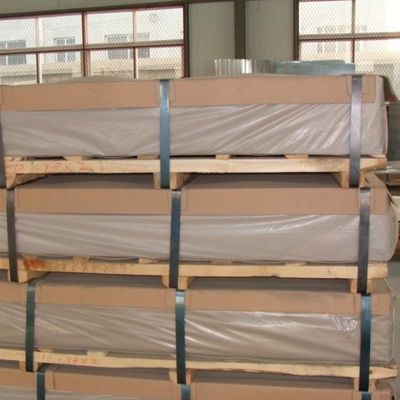

Corrosion Resistance 5754 Aluminum Plate Thick Aluminum Sheet For Transportation

Aluminum 5754 was a common alloy often designated “AlMg3”, it is an aluminum alloy with

magnesium as the primary alloying element, supplemented with small chromium and/or

manganese additions. It has good formability when in the fully soft, annealed temper and

can be work-hardened to very high strength levels. It is slightly stronger, but less ductile,

than 5052 alloy.

the Advantages of 5754 Aluminum Alloy

Excellent  Weldability

The alloy has excellent weldability and improved workability. 5754 finds use in applications

in market sectors such as marine, oil & gas, chemical and nuclear.

Corrosion Resistance

5754 aluminium alloy is a higher strength material than 5251 and offers d good workability.

Its key characteristic is the alloys ability to provide excellent resistance to both seawater and

industrial chemical corrosion.

the Typical Application of Different Thickness

1. Thin Plate (0.2mm–6.0mm)

   - 0.2–1.0mm: Ultra-thin sheets for precision stamping or packaging.

   - 1.0–3.0mm: Commonly used in automotive interiors, ship bulkheads, and tank linings.

   - 3.0–6.0mm: Structural components, fuel tanks, and container panels.

2. Medium-Thick Plate (6.0–25mm)

   - 6.0–12mm: Ship decks, chemical equipment linings, truck floor panels.

   - 12–25mm: Heavy transport equipment, bridge structures, pressure vessels.

3. Thick Plate (Above 25mm)

   - Primarily used in specialized industries, such as large ship structures and heavy

     machinery supports.

the Production Range of Our Factory

the Equipment Advantages of our Factory

• All the melting and holding furnaces are supplied by GAUTSCHI (Switzerland) Company,

   they improve the quality of Aluminum alloy slab which can guarantee Aluminium alloy

   products with high-performance. GAUTSCHI is a global leading manufacturer of melting

   furnaces in the aluminum processing industry, the equipment is famous with its high eff

   -iciency, energy conservation, environmental protection and intelligent control , and is

   widely used in the smelting, heat preservation and casting of aluminum and aluminum

   alloys. They are preferred equipments for Aluminum material of automobiles and aeros

   -pace industries.

 • 1+1+4 hot rolling mills (1 Reversible Roughing Mill +1 Finishing Mill + 4 Tandem Finishing Mills)

   These machines are  from SMS Group (Germany). All the hot finishing rolling mills adopt

   the CVC flatness control technology, which can produce hot-rolled coils and sheets with

   ideal flatness. The characteristics of these equipments are high efficiency, high precision,

   well-adapted, energy saving and consumption reduction. They are the core equipments

   of modern aluminum material processing, and suitable for large-scale, high-precision alu

   -minum material production, and widely used in the automobile, packaging, aerospace etc

   fields
