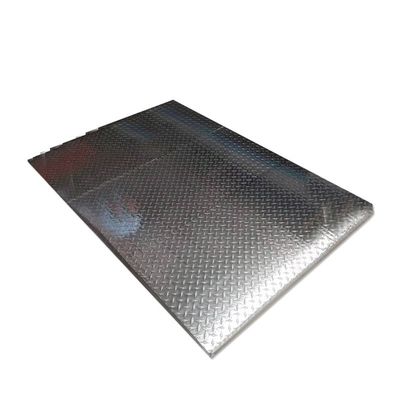

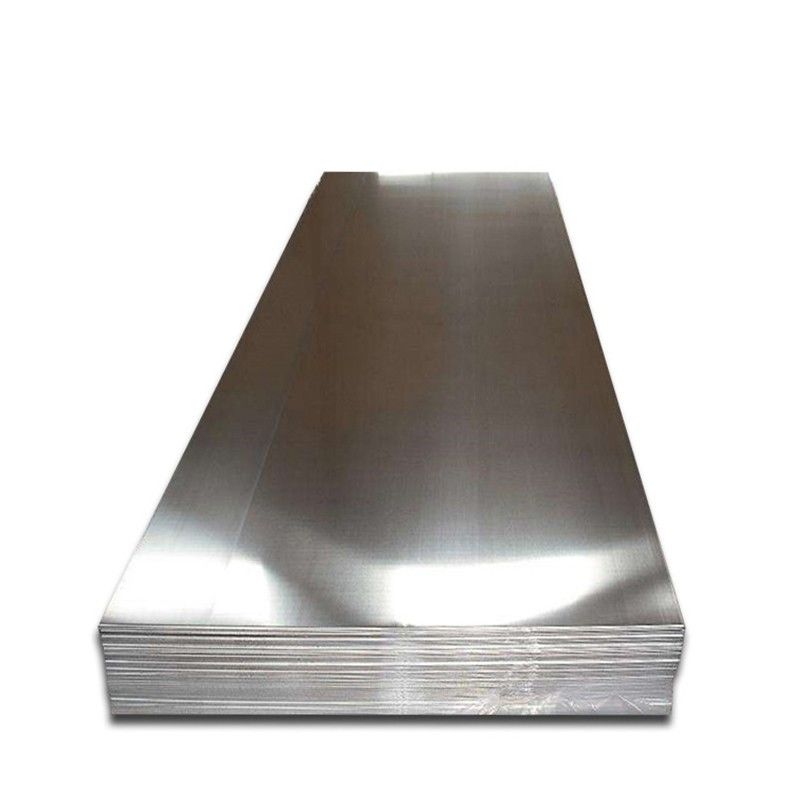

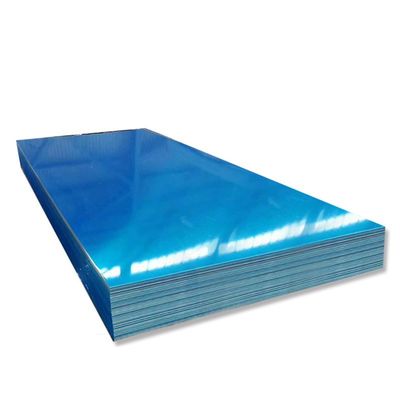

Bright Finish 3003 H14 Aluminum Alloy Sheet For Garage Doors

Brand Name:	JERO
Model Number:	JA10
MOQ:	5 TONS
Price:	US$1800-2000 Per Ton

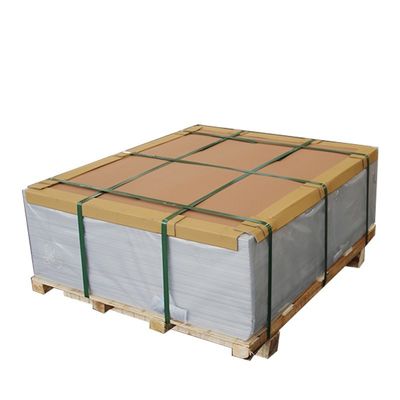

Packaging Details:	Seaworthy Export Package
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

HENAN, CHINA

Certification:

CE ISO

Type:

Aluminum

Alloy:

3 Series 3003

Temper:

H12/h14/h16

Surface:

Bright Finish

Supply Ability:

3000 TONS PER MONTH

Highlight:

3003 H14 Aluminum Alloy Sheet

Garage Doors Aluminum Alloy Sheet

Bright Finish Aluminum Alloy Sheet

Product Description

3003 h14 aluminium alloy sheet 3003 aluminum coil used for garage doors

An all-purpose alloy for general applications

Alloyed primarily with manganese, 3003 aluminum’s moderate-strength, strong corrosion resistance,

and attractive price point make it a popular all-purpose metal. Its moderate strength can’t be boosted

through heat-treatment, but it can be effectively increased through cold working.

Because 3003 aluminum receives good ratings for machinability, it’s relatively easy to cut, drill, mill, and

turn. The versatile alloy is highly ductile, making it suited for forming, and it joins well with other metals

through brazing and MIG, TIG, and resistance welding.

3003’s outstanding properties include

• Corrosion resistance.

3003 aluminum offers excellent corrosion resistance, making it suitable for applications

involving moisture and chemicals, such as storage tanks.

• Workability and formability.

The alloy can be formed, bent, and welded with relative ease, meeting the needs of a variety of manufacturing

processes.Moderate strength. Although there are other alloys that are stronger, 3003 aluminum is strong enough

for many applications, striking a balance between strength and workability.

• Electrical and thermal conductivity.

3003 aluminum’s good conductivity makes it a strong fit for electrical and thermal applications.

3003 aluminum mechanical properties

These properties demonstrate how 3003 aluminum performs under different forces or loads. The following

are general mechanical properties of 3003 H14 temper and are provided for reference only.

3003 Aluminum Mechanical Properties
Alloy & Temper	Thickness	Tensile Strengths – ksi
		ULTIMATE		YIELD		Elongation % min in 2in or 4D
		Min	Max	Min	Max	Elongation % min in 2in or 4D
3003-H14	.009-.012	20	26	17		1
	.013-.019	20	26	17		2
	.020-.031	20	26	17		3
	.032-.050	20	26	17		4
	.051-.113	20	26	17		5
	.114-.161	20	26	17		6
	.162-.249	20	26	17		7
	.250-.499	20	26	17		8
	.500-1.00	20	26	17		10

3003 aluminum uses

3003 aluminum’s strength, workability and corrosion resistance make it a favorite all-purpose aluminum

alloy with near-endless applications. Some of its most popular uses include:

* Cooking utensils

* Storage and gasoline tanks

* Chemical and food processing equipment

* Home appliances

* HVAC ducts
